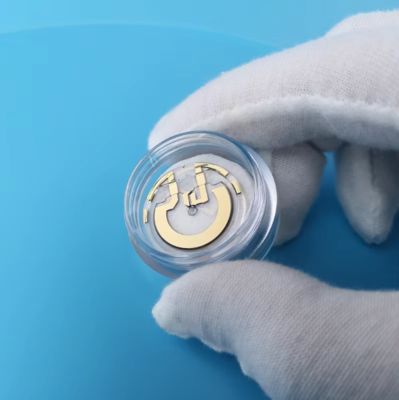

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection

  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
Τόπος καταγωγής Shandong, Κίνα
Μάρκα ZKTD
Πιστοποίηση ISO 9001:2008, Rohs
Αριθμό μοντέλου ZKTD-PO12
Ποσότητα παραγγελίας min 5 τεμ.
Τιμή USD 48/Pieces
Συσκευασία λεπτομέρειες Κουτί, ξύλινο κιβώτιο, βαμβάκι μαργαριταριού.
Χρόνος παράδοσης 14 εργάσιμες
Όροι πληρωμής L/c, t/t
Δυνατότητα προσφοράς 10000 κομμάτια/μήνα

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Επισημαίνω

flexible beam quartz pendulum

,

gold coated quartz pendulum

,

high reflection quartz glass
Μπορείτε να σημειώσετε τα προϊόντα που χρειάζεστε και να επικοινωνήσετε μαζί μας στον πίνακα μηνυμάτων.
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Product Description

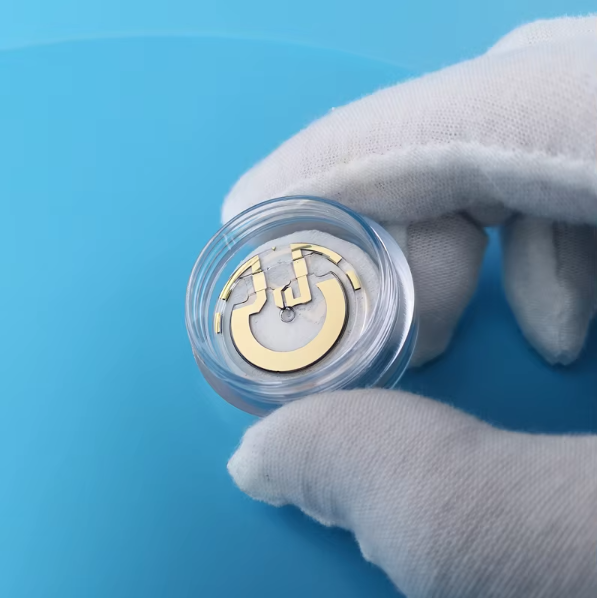

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 0

Specification

Item Value
Brand Name ZKTD
Application Sensor, Inertial Navigation, instrument
Shape Round
Chemical Composition 99.999% fused silica
Product Name Flexible Beam Quartz Pendulum
Color Clear Transparent
Parallelism <2um
Flatness <0.6um
Surface Roughness Ra <1nm
Thickness Error Of Flexible Beam <1um

Flexible Beam Quartz Pendulum For Inertial Navigation
Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.

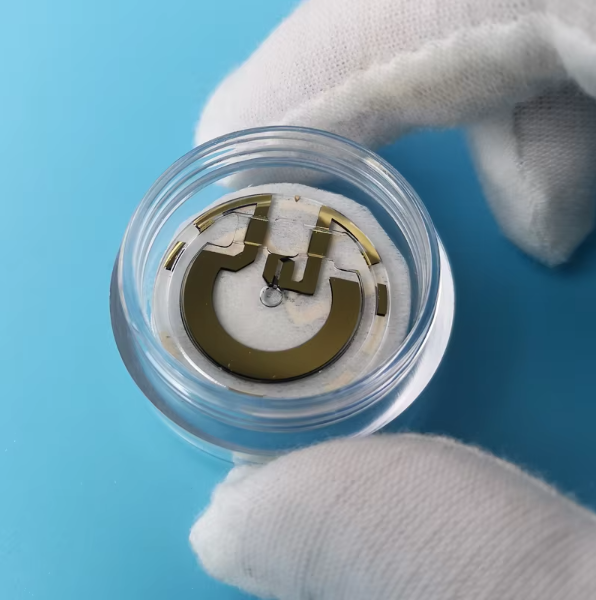

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 1

Company Profile

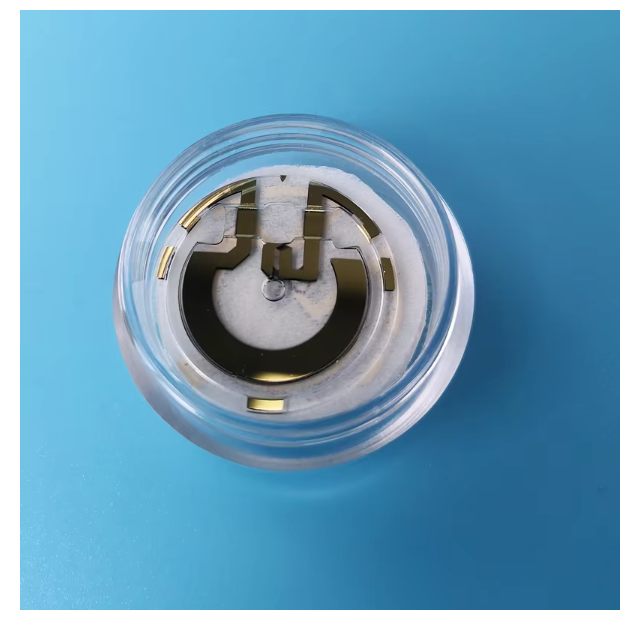

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 2
Yantai ZK Optics Co., Ltd., is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales. The
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.

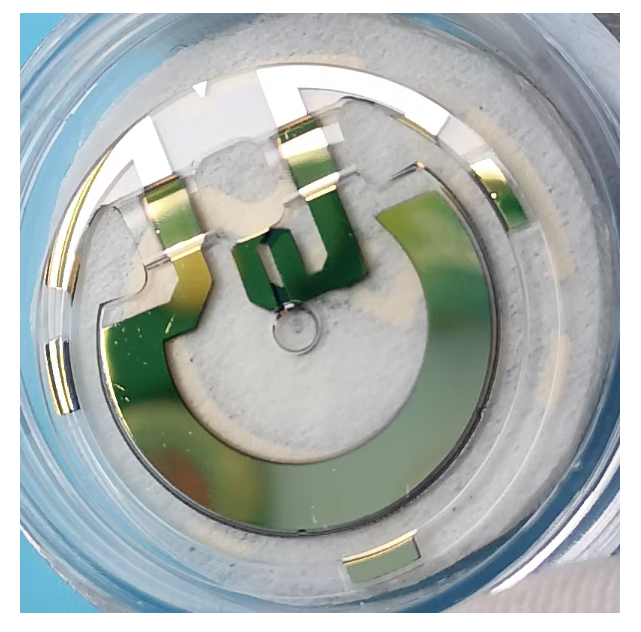

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 3

Certificate

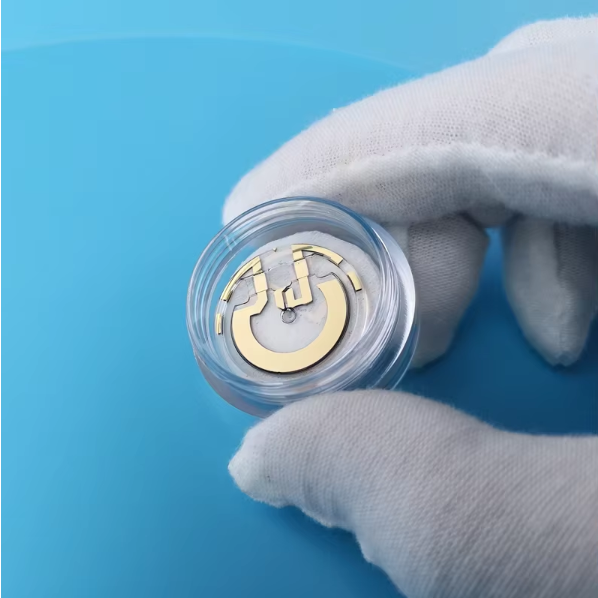

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 4

Packing & Delivery

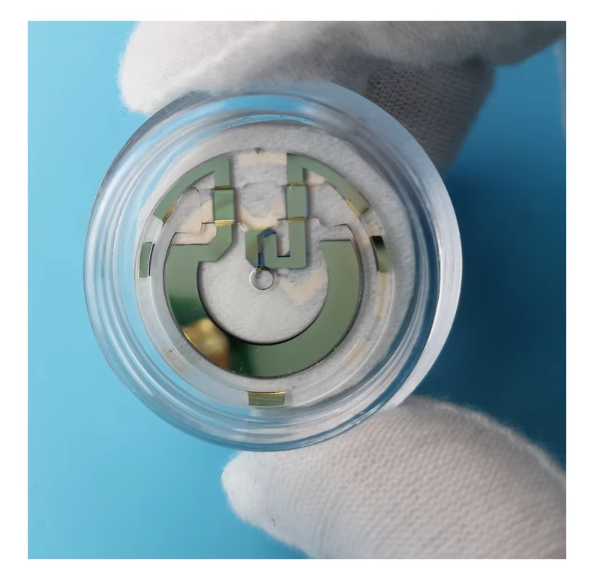

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 5

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 6

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
